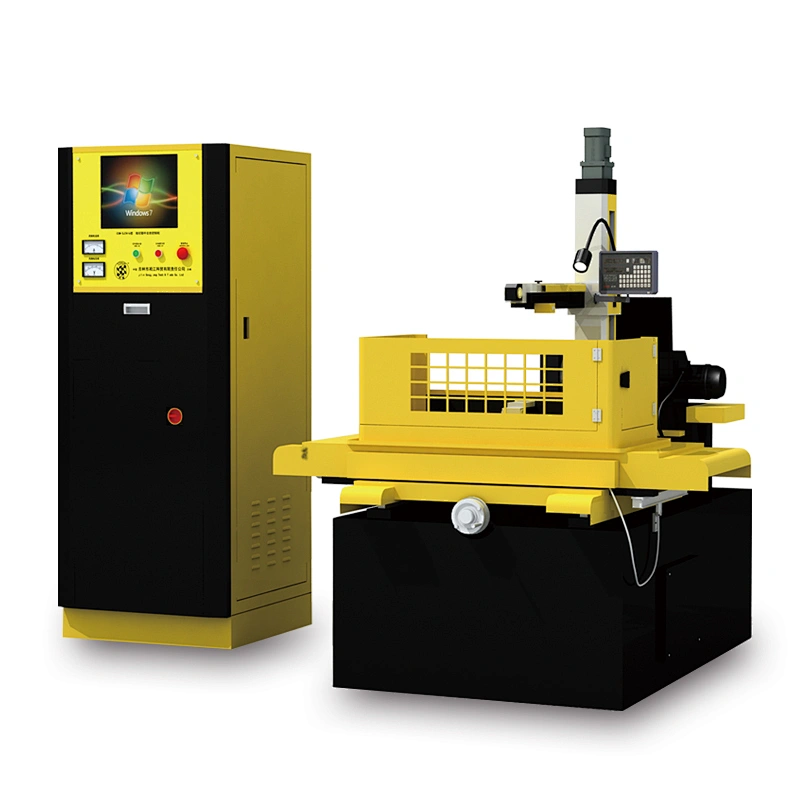

Standard Type CNC EDM Wire Cutting Machine can ensure a good smoothness when cutting efficiently. The machine has stable processing performance, convenient parameter setting, high precision and good consistency in processing. It has the characteristics of high cutting efficiency and good cutting smoothness.
The equipment is suitable for customers who require high precision and roughness .It is also suitable for processing molds.
Electrical Parameters:
| Description | Unit | Specification |
| Max.Cutting Speed | mm²/min | 200 |
| Wire Electrode Diameter | mm | φ0.1~φ0.25 |
| Machining Precision(cutting octagon) | mm | ≤0.012 |
| Taper/Workpiece Height | 6°/100mm | |
| Power Consumption | kw | 3 |
| Surface roughness | μm | single cut Ra＜2.0 *Multiple cut Ra＜0.8 |
| High pressure water tank | Multi-stage filter system | |
| Wire guided spinneret | Ruby spinneret | |
| Control method of wire spool, cooling system | Controlled by the program and the NC panel | |
| Repeating position precision of X,Y-axis | μm | ±1 |
| Guide rail type | Linear guide rail | |
| Speed regulation of transport wire tube | Converter | |
| Number of control axes | 5 | |
| Power Supply | AC380V 50Hz |
*The material of workpiece is Cr12 and the height is less than 100mm.
Equipment Specification:
| Description | Unit | Specification | Specification | Specification | Specification | Specification | Specification | Specification |
| Modle | S250 | S320 | S400 | S500 | S630 | S800 | S1000 | |
| Worktable Size (LxW) | mm | 300x500 | 400x640 | 510x710 | 620x930 | 700x1080 | 880x1540 | 1150x1760 |
| Worktable Travel (LxW) | mm | 250x320 | 320x400 | 400x500 | 500x630 | 630x800 | 800x1000 | 1000x1200 |
| Max.Workpiece Height | mm | 350 | 500 | 500 | 600 | 600 | 700 | 800 |
| Max.Workpiece Weight | kg | 300 | 500 | 600 | 800 | 2000 | 4000 | 5000 |
| Machine Dimensions(LxWxH) | mm | 1500x900x1600 | 1650x1150x1900 | 1850x1200x1900 | 2000x1350x200 | 2150x1500x2300 | 2500x2150x2400 | 3000x2800x2500 |
| Machine Weight | kg | 1000 | 1500 | 1900 | 2800 | 3900 | 5500 | 6800 |
Standard Accessories:
l X, Y-axis stepping motor
l Grating ruler
l Regulated power supply
l Gravity tightening system
l Z-axis lift by electric driving
l Linear guide rail(HIWIN)
l High pressure tank
l Integrated electric lubrication system of guide rail and lead screw
l Converter
l Win7 operating system
l Integrated control cabinet
l Industrial computer IPC
l Separating transformer system
l A set of tools and accessories
l One-year warranty
Optional Accessories:
l X/Y-axis servo motor
l Z-axis column is increased in height
l Electric integration lubrication system
l 60° cutting taper
l High precision lead screw
l Ruby spinneret/diamond spinneret guider
l The color of machine is optional ( The color of control cabinet is nonoptional).
l Two-year warranty
※ The above configuration and parameters are subject to change without prior notice.
