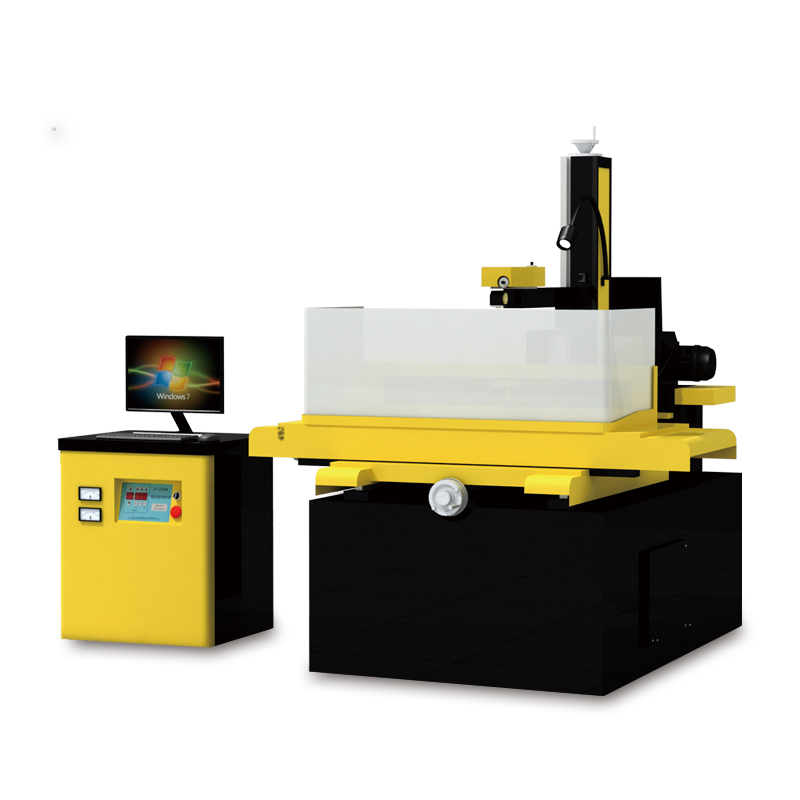

Smart type CNC EDM Wire Cutting Machine is an economical and efficient machine designed for individual processors and small-medium-sized enterprises. It can save space and the speed is fast. At the same time, it reduced the maintenance by virtue of embedded control system.
The equipment is suitable for customers who require high processing efficiency and low roughness and accuracy.
Electrical Parameters:
| Description | Unit | Specification |
| Max.Cutting Speed | mm²/min | 180 |
| Wire Electrode Diameter | mm | φ0.18~φ0.25 |
| Machining Precision(cutting octagon) | mm | ≤0.012 |
| Taper/Workpiece Height | | 6°/100mm |
| Power Consumption | kw | 2 |
| Surface roughness | μm | Ra＜3 |
| High pressure water tank | | Multi-stage filter system |
| Control method of wire spool,cooling system | | Controlled by the program and the NC panel |
| Repeating position precision of X,Y-axis | μm | ±1 |
| Guide rail type | | V-groove rail |
| Speed regulation of transport wire tube | | converter |
| Number of control axes | | 5 |
| Power Supply | | AC380V 50Hz |
Equipment Specification:
| Description | Unit | Specification | Specification | Specification | Specification | Specification |
| Modle | | M250 | M320 | M400 | M500 | M630 |
| Worktable Size (LxW) | mm | 300x490 | 455x625 | 520x770 | 600x900 | 670x1000 |
| Worktable Travel (LxW) | mm | 250x320 | 350x450 | 450x550 | 550x800 | 630x800 |
| Max.Workpiece Height | mm | 350 | 400 | 400 | 600 | 700 |
| Max.Workpiece Weight | kg | 200 | 300 | 500 | 700 | 900 |
| Machine Dimensions(LxWxH) | mm | 1500x900x1450 | 1650x1180x1650 | 1865x1520x1650 | 2070x1850x2100 | 2265x1865x2100 |
| Machine Weight | kg | 1000 | 1200 | 1500 | 2500 | 3200 |
Standard Accessories:
X, Y-axis stepping motor
V-groove rail
High pressure water tank
Concentrated manual lubricating system
Converter
X8 operating system
Separated desk control cabinet
System integrated controller
Isolating transformer system
A set of tools and accessories
One-year warranty
Optional Accessories:
Linear guide rail(HIWIN)
Grating ruler
Z-axis column is increased in height
Z-axis lift by electric driving
Gravity tightening system(above model SJ320)
Electric integration lubrication system(only linear guide rail)
60° cutting taper
High precision lead screw
Ruby spinneret/diamond spinneret guider
Regulated power supply
The color of machine is optional (The color of control cabinet in nonoptional)
Two-year warranty
※ The above configuration and parameters are subject to change without prior notice.
