性能与特点：

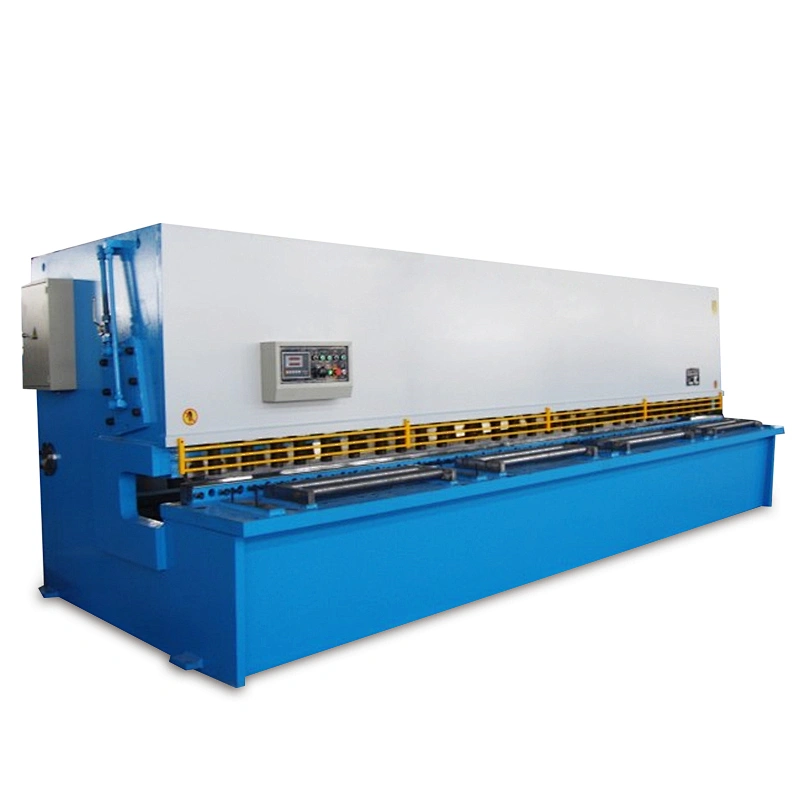

- 主机选用QC12Y系列液压摆式剪板机；
- 数控系统选用ESTUN专用剪板机数控系统，速度快，精度高，稳定性好，能精确地保证后挡料位移尺寸的精度，同时数控系统具有精度补偿功能及自动检测的多种附加功能。
技术参数:
名称/规格 | 可剪板厚mm | 可剪板宽 mm | 行程次数min | 后挡料范围mm | 剪切角 （°） | 主电机功率 kw |
QC12K-4*2500 | 4 | 2500 | 18 | 20-600 | 1°30′ | 4.0 |
QC12K-4*3200 | 4 | 3200 | 18 | 20-600 | 1°30′ | 5.5 |
QC12K-4*4000 | 4 | 4000 | 12 | 20-600 | 1°30′ | 5.5 |
QC12K-4*5000 | 4 | 5000 | 10 | 20-600 | 1°30′ | 5.5 |
QC12K-4*6000 | 4 | 6000 | 7 | 20-800 | 1°30′ | 7.5 |
QC12K-6*2500 | 6 | 2500 | 18 | 20-600 | 1°30′ | 7.5 |
QC12K-6*3200 | 6 | 3200 | 14 | 20-600 | 1°30′ | 7.5 |
QC12K-6*4000 | 6 | 4000 | 12 | 20-600 | 1°30′ | 7.5 |
QC12K-6*5000 | 6 | 5000 | 10 | 20-600 | 1°30′ | 7.5 |
QC12K-6*6000 | 6 | 6000 | 7 | 20-800 | 1°30′ | 7.5 |
QC12K-8*2500 | 8 | 2500 | 14 | 20-600 | 1°30′ | 7.5 |
QC12K-8*3200 | 8 | 3200 | 10 | 20-600 | 1°30′ | 11 |
QC12K-8*4000 | 8 | 4000 | 8 | 20-600 | 1°30′ | 15 |
QC12K-8*5000 | 8 | 5000 | 7 | 20-800 | 1°30′ | 15 |
QC12K-8*6000 | 8 | 6000 | 6 | 20-800 | 1°30′ | 15 |
QC12K-8*8000 | 8 | 8000 | 5 | 20-800 | 1°30′ | 11 |
QC12K-10*2000 | 10 | 2500 | 12 | 20-600 | 1°30′ | 11 |
QC12K-10*2500 | 10 | 3200 | 10 | 20-600 | 1°30′ | 11 |
QC12K-10*3200 | 10 | 4000 | 10 | 20-600 | 1°30′ | 15 |
QC12K-10*4000 | 10 | 5000 | 8 | 20-600 | 1°30′ | 15 |
QC12K-12*2000 | 12 | 2000 | 12 | 20-600 | 2° | 15 |
QC12K-12*2500 | 12 | 2500 | 10 | 20-600 | 2° | 15 |
QC12K-12*3200 | 12 | 3200 | 9 | 20-600 | 2° | 18.5 |
QC12K-12*4000 | 12 | 4000 | 8 | 20-800 | 2° | 22 |
QC12K-12*5000 | 12 | 5000 | 7 | 20-800 | 2° | 22 |
QC12K-12*6000 | 12 | 6000 | 6 | 20-800 | 2° | 22 |
QC12K-12*8000 | 12 | 8000 | 5 | 20-800 | 2° | 18.5 |
QC12K-16*2500 | 16 | 2500 | 8 | 20-600 | 2° | 18.5 |
QC12K-16*3200 | 16 | 3200 | 7 | 20-600 | 2° | 18.5 |
QC12K-16*4000 | 16 | 4000 | 5 | 20-800 | 2° | 22 |
QC12K-20*2000 | 20 | 2000 | 8 | 20-800 | 2°30′ | 22 |
QC12K-20*2500 | 20 | 2500 | 6 | 20-800 | 2°30′ | 30 |
QC12K-20*3200 | 20 | 3200 | 6 | 20-1000 | 2°30′ | 30 |
QC12K-20*4000 | 20 | 4000 | 6 | 20-1000 | 2°30′ | 30 |
QC12K-25*2000 | 25 | 2000 | 6 | 20-1000 | 3° | 30 |
QC12K-25*2500 | 25 | 2500 | 6 | 20-1000 | 3° | 37 |
QC12K-25*3200 | 25 | 3200 | 6 | 20-1000 | 3° | 37 |
QC12K-30*2500 | 30 | 2500 | 6 | 20-1000 | 3°30′ | 45 |
QC12K-30*3200 | 30 | 3200 | 5 | 20-1000 | 3°30′ | 55 |
QC12K-40*2500 | 40 | 2500 | 5 | 20-1000 | 4° | 55 |
QC12K-40*3200 | 40 | 3200 | 5 | 20-1000 | 4° | 90*3 |
QC12K-50*3000 | 50 | 3000 | 5 | | 3° | 90*5 |
QC12K-50*6000 | 50 | 6000 | 5 | | 3° | 90 |
QC12K-60*3500 | 60 | 3500 | 5 | | 3°30′ | *4 |
***由于产品在不断改进中，技术参数如有改动，恕不另行通知，以随机技术文件为准。
