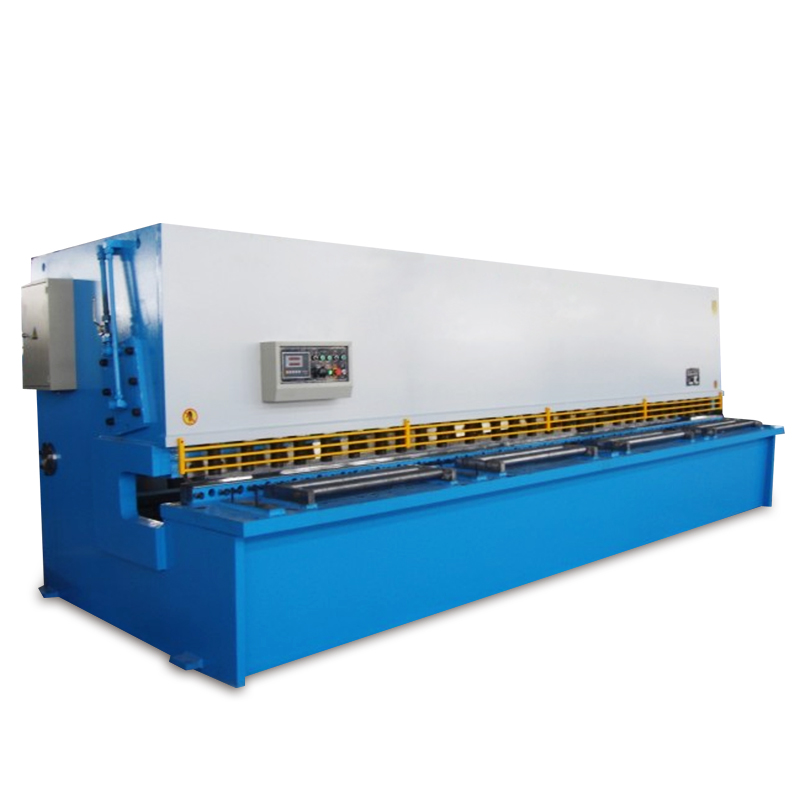

QC12Y Series Hydraulic Swing Beam Shear

Model NO.: QC12Y

Quantity:

Product Description

Performance：

1.All steel welded structure.Vibrating treatment of aging for removal of internal stress.Good rigidity and stability.

2.Using precision slide rail to eliminate the rail space.The shearing quality is high;

3.Diamond-shaped upper slitter and rectangular lower slitter. Long service life.

Parameter:

Parameter/Specification	Shearing Thickness mm	Shearing Width mm	Number of Stroke min	Backguage range mm	Shearing angle （°）	Motor Power kw
QC12Y-4*2500	4	2500	18	20-600	1°30′	4.0
QC12Y-4*3200	4	3200	18	20-600	1°30′	5.5
QC12Y-4*4000	4	4000	12	20-600	1°30′	5.5
QC12Y-4*5000	4	5000	10	20-600	1°30′	5.5
QC12Y-4*6000	4	6000	7	20-800	1°30′	7.5
QC12Y-6*2500	6	2500	18	20-600	1°30′	7.5
QC12Y-6*3200	6	3200	14	20-600	1°30′	7.5
QC12Y-6*4000	6	4000	12	20-600	1°30′	7.5
QC12Y-6*5000	6	5000	10	20-600	1°30′	7.5
QC12Y-6*6000	6	6000	7	20-800	1°30′	7.5
QC12Y-8*2500	8	2500	14	20-600	1°30′	7.5
QC12Y-8*3200	8	3200	10	20-600	1°30′	11
QC12Y-8*4000	8	4000	8	20-600	1°30′	15
QC12Y-8*5000	8	5000	7	20-800	1°30′	15
QC12Y-8*6000	8	6000	6	20-800	1°30′	15
QC12Y-8*8000	8	8000	5	20-800	1°30′	11
QC12Y-10*2000	10	2500	12	20-600	1°30′	11
QC12Y-10*2500	10	3200	10	20-600	1°30′	11
QC12Y-10*3200	10	4000	10	20-600	1°30′	15
QC12Y-10*4000	10	5000	8	20-600	1°30′	15
QC12Y-12*2000	12	2000	12	20-600	2°	15
QC12Y-12*2500	12	2500	10	20-600	2°	15
QC12Y-12*3200	12	3200	9	20-600	2°	18.5
QC12Y-12*4000	12	4000	8	20-800	2°	22
QC12Y-12*5000	12	5000	7	20-800	2°	22
QC12Y-12*6000	12	6000	6	20-800	2°	22
QC12Y-12*8000	12	8000	5	20-800	2°	18.5
QC12Y-16*2500	16	2500	8	20-600	2°	18.5
QC12Y-16*3200	16	3200	7	20-600	2°	18.5
QC12Y-16*4000	16	4000	5	20-800	2°	22
QC12Y-20*2000	20	2000	8	20-800	2°30′	22
QC12Y-20*2500	20	2500	6	20-800	2°30′	30
QC12Y-20*3200	20	3200	6	20-1000	2°30′	30
QC12Y-20*4000	20	4000	6	20-1000	2°30′	30
QC12Y-25*2000	25	2000	6	20-1000	3°	30
QC12Y-25*2500	25	2500	6	20-1000	3°	37
QC12Y-25*3200	25	3200	6	20-1000	3°	37
QC12Y-30*2500	30	2500	6	20-1000	3°30′	45
QC12Y-30*3200	30	3200	5	20-1000	3°30′	55
QC12Y-40*2500	40	2500	5	20-1000	4°	55
QC12Y-40*3200	40	3200	5	20-1000	4°	90*3
QC12Y-50*3000	50	3000	5		3°	90*5
QC12Y-50*6000	50	6000	5		3°	90
QC12Y-60*3500	60	3500	5		3°30′	*4

***Description and specification provided in the catalogue are subject to modification without notice.
