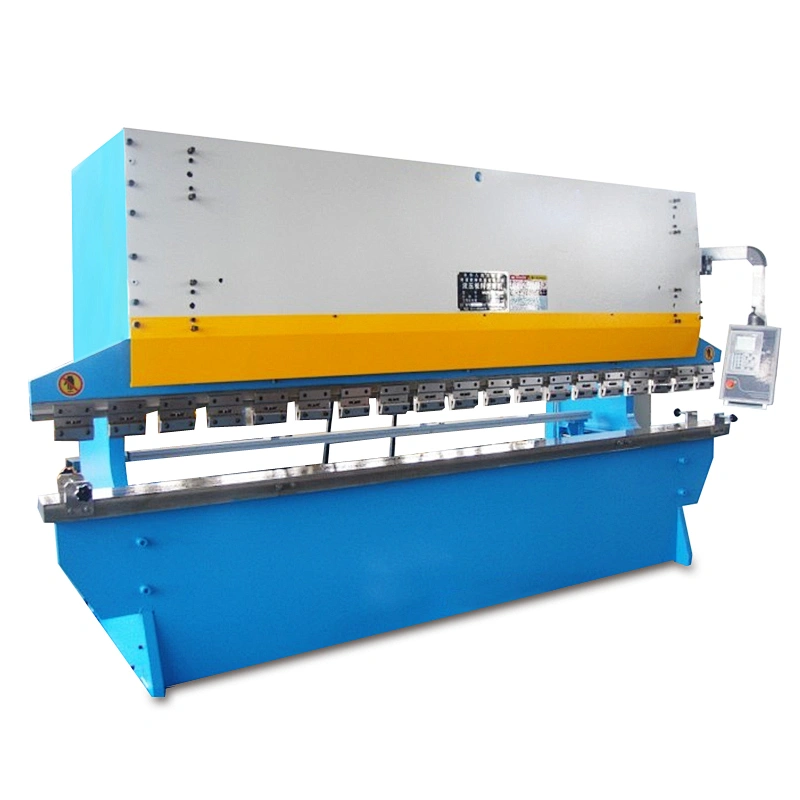

WC67Y Series Three Cylinder hydraulic Press brake

Quantity:

Performance：

Three cylinder hydraulic press brake has the function of fast forward, work and quick return. It is ideal special equipment for stainless steel processing, high strength plate processing and anti-theft door production；
Intermediate cylinder pressure is equipped with a special regulating mechanism., The working pressure can be adjusted according to the processing requirements to achieve perfect processing quality；
When the three cylinders work, it can correct the flattening problem of central part for ordinary press brake.

Parameter：

Specification	Nominal Pressure KN	Length of Work Table mm	Distance between uprights mm	Throat Depth mm	Slide Stroke mm	Motor Power kw
WC67Y/K-40/2000	400	2000	1800	250	100	4
WC67Y/K-40/2200	400	2200	1800	250	100	4
WC67Y/K-40/2500	400	2500	2000	250	100	4
WC67Y/K-50/2500	500	2500	1900	250	100	4
WC67Y/K-50/3200	500	3200	2600	250	100	4
WC67Y/K-63/2500	630	2500	2020	250	120	5.5
WC67Y/K-63/3200	630	3200	2600	250	120	5.5
WC67Y/K-80/3200	800	3200	2600	250	120	5.5
WC67Y/K-80/4000	800	4000	3200	250	120	5.5
WC67Y/K-100/2500	1000	2500	2000	320	120	7.5
WC67Y/K-100/3200	1000	3200	2600	320	120	7.5
WC67Y/K-100/4000	1000	4000	3200	320	120	7.5
WC67Y/K-100/5000	1000	5000	4000	320	120	7.5
WC67Y/K-125/2500	1250	2500	2000	320	120	7.5
WC67Y/K-125/3200	1250	3200	2600	320	120	7.5
WC67Y/K-125/4000	1250	4000	3200	320	120	7.5
WC67Y/K-125/5000	1250	5000	4000	320	120	7.5
WC67Y/K-160/3200	1600	3200	2600	320	200	11
WC67Y/K-160/4000	1600	4000	3200	320	200	11
WC67Y/K-160/5000	1600	5000	4000	320	200	15
WC67Y/K-160/6000	1600	6000	4800	320	200	15
WC67Y/K-200/3200	2000	3200	2600	320	200	15
WC67Y/K-200/4000	2000	4000	3200	320	200	15
WC67Y/K-200/5000	2000	5000	4000	320	200	15
WC67Y/K-200/6000	2000	6000	4800	320	200	15
WC67Y/K-250/3200	2500	3200	2600	400	250	22
WC67Y/K-250/4000	2500	4000	3200	400	250	22
WC67Y/K-250/5000	2500	5000	4000	400	250	22
WC67Y/K-300/4000	3000	4000	3200	400	250	22
WC67Y/K-300/5000	3000	5000	4000	400	250	22
WC67Y/K-300/6000	3000	6000	4800	400	250	22
WC67Y/K-400/5000	4000	5000	4000	400	250	30
WC67Y/K-400/6000	4000	6000	4800	400	250	37
WC67Y/K-500/6000	5000	6000	4800	400	300	37
WC67Y/K-600/7000	6000	7000	5600	400	300	45
WC67Y/K-700/7000	7000	7000	5600	400	300	45
WC67Y/K-800/6000	8000	8000	5600	500	400	55
WC67Y/K-1000/6000	10000	6000	5600	600	500	75

***Description and specification provided in the catalogue are subject to modification without notice.

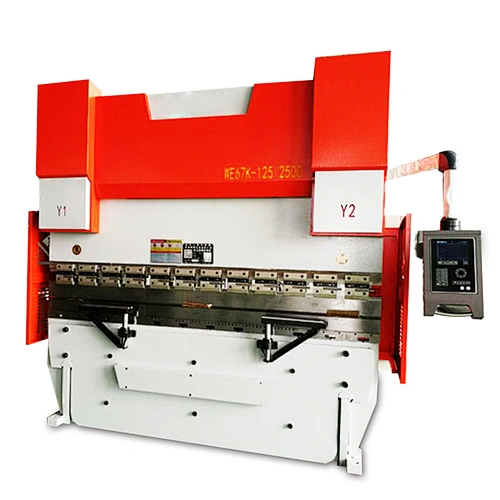

WC67K Series CNC Hydraulic Press Brake
